| import React, { useCallback, useEffect, useMemo, useState } from 'react';
import Konva from "konva";
import { useRedux } from '@/hooks/useRedux';
let stage; // 定义画布
let layer; // 图层
let grids; // 网格
let mousedown = false;
let startPos: { x: number, y: number } | null; // 鼠标点击当前的坐标（坐标对标格子的下标）

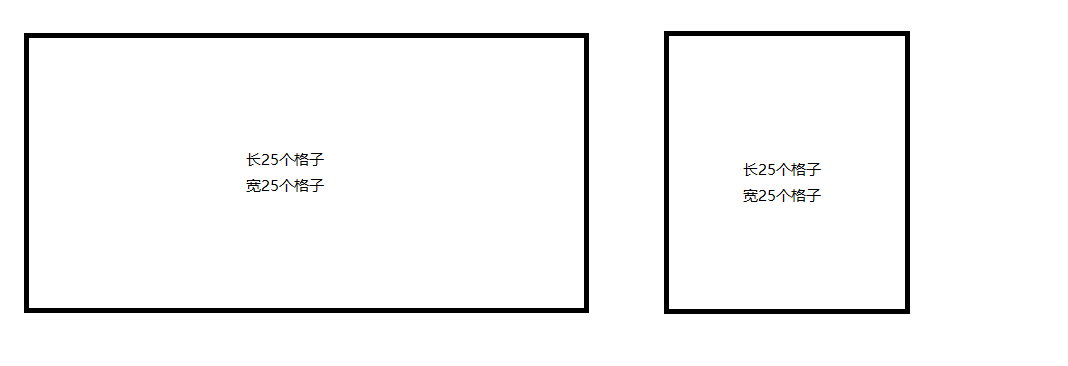

const count = 25; // 总共 x,y分别都是25个格子
const itemW = 20; // 每个网格的宽度
const itemH = 20; // 每个网格的高度
let detectAreaData: any = []; // 整个检测区域
// detectAreaData是这样的一个结构
// [[true,true,false...25个],...]25个
// 就是总共从0开始，一共25个下标，每个下标又是一个数组，数组里是25个true/false
interface IProps {
drawing: boolean; // 是否开启绘制模式
}
export interface ISelectGridData {
x: number;
y: number;
}
export const PreviewSettingBox: React.FC<IProps> = (props) => {
const { drawing } = props;
const canvasContainerRef = React.useRef<HTMLDivElement>(null);
const [selectGridData, setSelectGridData] = useState<ISelectGridData[]>();
const handleRender = useCallback(() => {
const data: { x:number;y:number }[] = [];
for (let x = 0; x < count; x++) {
for (let y = 0; y < count; y++) {
if (detectAreaData?.length > 0 && detectAreaData[x][y] === true) { // 为true就是画上的
grids[x][y].attrs.stroke = "red";
grids[x][y].attrs.fill = "rgba(255,0,0,0.3)";
grids[x][y].attrs.zIndex = 399;
data.push({ x,y });
} else {
grids[x][y].attrs.stroke = "rgba(0,0,0,0.3)";
grids[x][y].attrs.fill = null;
grids[x][y].attrs.zIndex = 0;
}
}
}
setSelectGridData(data);
layer.draw();
}, [])
// 根据鼠标的坐标去判断选中还是取消区域
const selectGridRect = useCallback((x1: number, y1: number, x2: number, y2: number) => {
for (let x = 0; x < count; x++) {
for (let y = 0; y < count; y++) {
if (x >= x1 && x <= x2 && y >= y1 && y <= y2) {
detectAreaData[x][y] = true;
} else {
detectAreaData[x][y] = false;
}
}
}
handleRender();
}, [handleRender])
// 为每个网格添加鼠标的监听事件 or 移除事件
const updateDrawCanvas = useCallback(() => {
for (let x = 0; x < count; x++) {
for (let y = 0; y < count; y++) {
grids[x][y].removeEventListener("mousemove");
grids[x][y].removeEventListener("click");
grids[x][y].on("mousemove", (e) => {
if (mousedown) {
if (e.evt.which === 1) {
if (!startPos) {
startPos = { x, y };
} else {
selectGridRect(startPos.x, startPos.y, x, y);
}
}
}
});
if (detectAreaData?.length > 0 && detectAreaData[x][y] === true) {
grids[x][y].attrs.stroke = "red";
grids[x][y].attrs.fill = "rgba(255,0,0,0.3)";
grids[x][y].attrs.zIndex = 399;
} else {
grids[x][y].attrs.stroke = "rgba(0,0,0,0.3)";
grids[x][y].attrs.fill = null;
grids[x][y].attrs.zIndex = 0;
}
}
}
layer.draw();
}, [selectGridRect])
const initStage = useCallback(() => {
if (stage) {
stage.destroy();
}
stage = new Konva.Stage({
container: canvasContainerRef.current!,
width: 500,
height: 500,
dragBoundFunc: (pos) => {
return pos;
},
});
stage.on("mousedown", () => {
mousedown = true; // 只有在鼠标点击的那一刻，才开始监听画布
});
stage.on("mouseup", () => {
mousedown = false;
startPos = null;
});
stage.on("mouseleave", () => {
mousedown = false;
});
}, [])
const initGrids = useCallback(() => {
if (layer) {
layer.destroy();
}
layer = new Konva.Layer();
grids = new Array<Array<Konva.Rect>>();

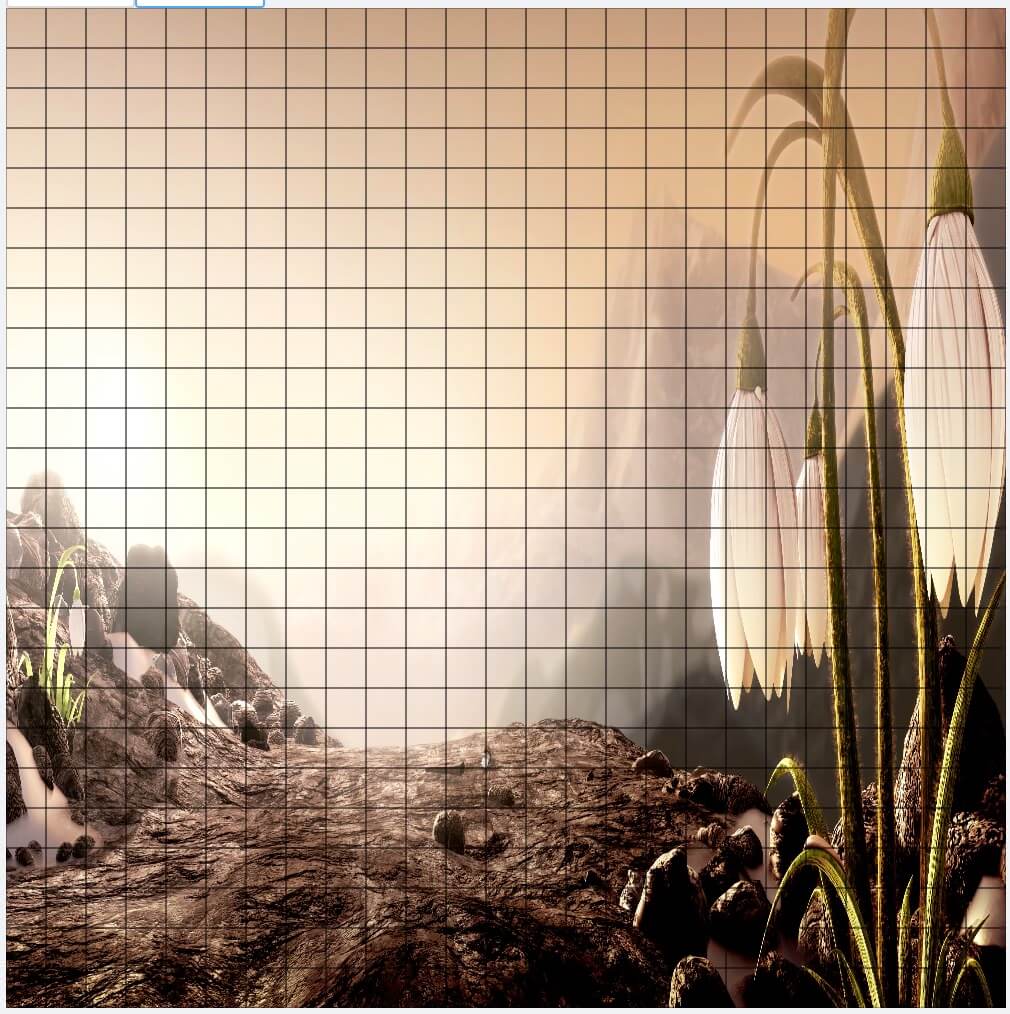

for (let x = 0; x < count; x++) { // 初始化网格
grids[x] = [];
detectAreaData[x] = [];
for (let y = 0; y < count; y++) {
detectAreaData[x][y] = [];
const gridItem = new Konva.Rect({
...{
x: x * itemW,
y: y * itemH,
width: itemW,
height: itemH,
},
name: "rect",
strokeWidth: 1,
draggable: false,
stroke: "rgba(0,0,0,0.3)",
fill: "white"
});
grids[x].push(gridItem);
layer.add(gridItem);
}
}
stage.add(layer);
layer.draw();
}, [])
useEffect(() => {
if (drawing) {
initStage();
initGrids();
}
}, [drawing, initGrids, initStage])
useEffect(() => {
if (drawing && detectAreaData?.length > 0) {
updateDrawCanvas();
}
}, [drawing, updateDrawCanvas])
return useMemo(() => {
return (
<div className='canvas-wrap' id="canvas-wrap">
{
drawing && <div ref={canvasContainerRef} style={{ width: "100%", height: "100%" }}></div>
}
{
selectGridData?.length && <div>
{
selectGridData.map((item) => {
return <p>x:{item.x}, y:{item.y}</p>
})
}
</div>
}
</div>
)
}, [drawing, selectGridData])
};
|
